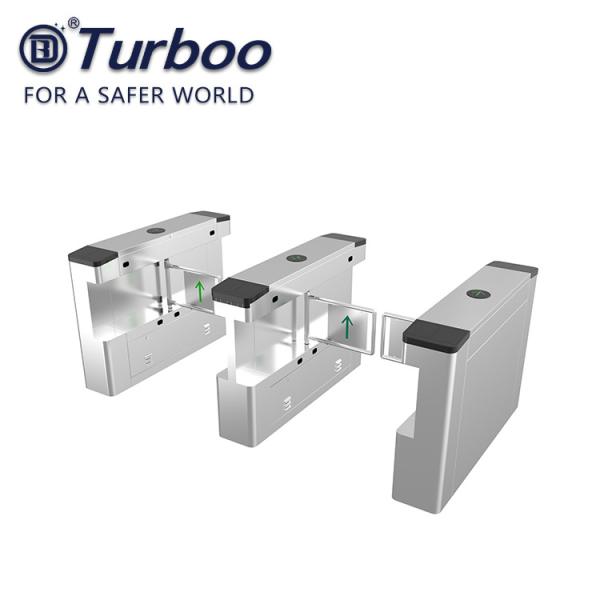

316 Stainless Steel Swing Barrier Gate

Brand Name : Turboo

Model Number : Y348

Certification : CE

Place of Origin : Guangdong

MOQ : 1 PC

Price : Negotiable

Payment Terms : L/C, T/T,

Supply Ability : 1000 units per month

Delivery Time : 2 weeks

Packaging Details : Wooden box/ Heavy carton package

Size : 1200x280x995mm

Material : 304/316 stainless steel

Input : 220V ,50Hz

Package : wooden box

Temperature : -25~+70℃

Transit speed : 35 persons/min

Reliability of the core : 3 million ,no fault

Time needed for opening : 0.2 seconds

Contact Now

High speed swing gate with 920mm pass width for disabled people and motorbike



Product Description

Technical Data Y348
Dimension 1200x280x995mm
Unlock time 0.2s
Passage width ≤550mm
Throughput rate 35p/m
Power supply 100~240v
Operational voltage 24v
Max power consumption 35w
Frequency 50~60hz
Prectection level 44ip
Working temperature -25~70 °C
Electro-magnetic drive DC
Net weight 88kg
Input 12v dry contact

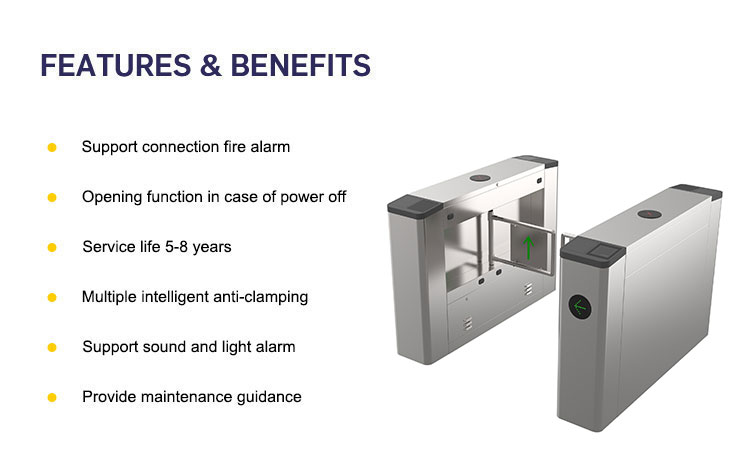

Features and Benefits



1. Use IC cards, ID cards, Bar code or magnetic cards as automatic identification system and achieve access, attendance fees or function

2. A direction indicator, showed that pedestrian access to the current status of, and guide pedestrians correct and smooth passage

3. Display has been in use for statistics and numbers

4. With voice and strobe light alerts

5. A combination of infrared sensors and police ant illegal entry into pedestrian access, the protection of pedestrians smooth and the prevention of the channel following

6. Double anti-clipping function, photocell antic lipping and mechanical anti-clipping

7. Auto re-set function, if no passing during identified card-reading time, the system will reset automatically the passengers are prohibited to pass until their second identified reading

8. The barrier can be set to delay closing in 1-60s after a valid card-reading



OPERATING MODES

1. Single passage in the set direction

2. Bi-directional single passage

3. Free passage in the set direction

4. Always free or locked
